NM500 Wear/ Abrasion Resistant Steel Plate

Short Description:

NM500 is a high-strength wear-resistant steel, which has a high wear resistance, Brinell hardness value reaches 500 (HBW) mainly in the need to wear the occasion or location to provide protection to the equipment longer life, reduced maintenance brought maintenance and downtime, and the corresponding reduction of capital investments.

Send email to us

Product Detail

Product Tags

Product Introduction

NM500 wear-resistant steel is widely used construction machinery, mining machinery, mining machinery, environmental protection machinery, metallurgical machinery, abrasives, bearings and other product components.

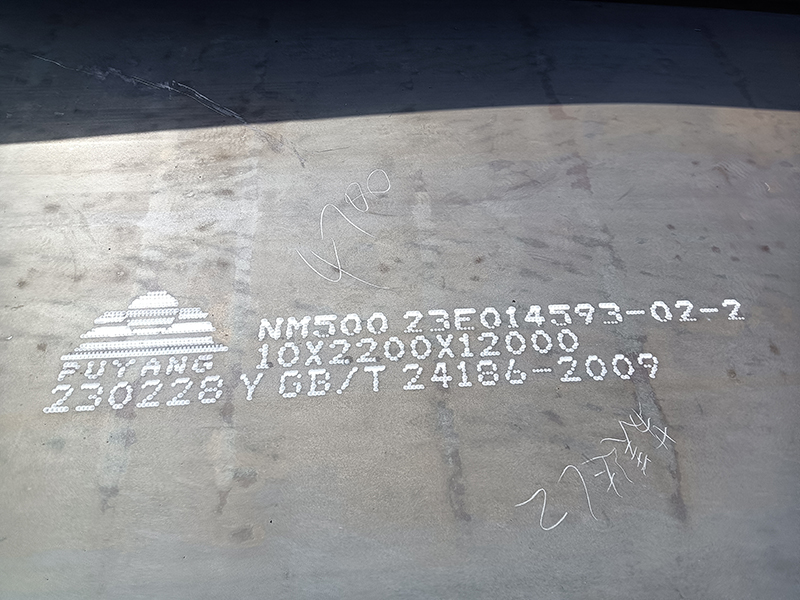

Product Display

Chemical Composition of NM500 steel plate（%）

Grade	C	Si	Mn	P	S	Cr	Mo	Ni	B	CEV
NM500	≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.20	≤0.65	≤1.0	Bt: 0.005-0.06	0.65

Mechanical Property of NM500 steel plate

Property			Impact test	HBW
Yield Mpa Min	Tensile Mpa	Elongation	Min J	Min 470
Thickness mm	Thickness mm	Degree	Min J
<70mm	<=80mm	≥24%	-20

NM500 is an abrasion resistant plate with a hardness of 500HBW, intended for applications where demands are imposed on abrasion resistance in combination with good cold bending properties. As a manufacturer of wear plates, we supply NM500 wear plates range from thickness : 3mm-60mm,Width 1400mm-4000mm, Length: 2000mm-15000mm.
